Licenses and Provisioning
Licenses
The following licenses are required for CPaaS SIP Trunk:
| Base | SIP Trunk | N/A |
|---|---|---|
| Add-On | SIP Trunk Concurrent Call* | N quantity (up to 300) / base * This Add-On will be billed according to the pricing model setup by our Ops Team |
| Add-On | IP Authentication Mode | 1 quantity / base |
| Add-On | High Availability | 1 quantity / base |
| Add-On | Number | N quantity (no limit) / base |
Provisioning of Licenses

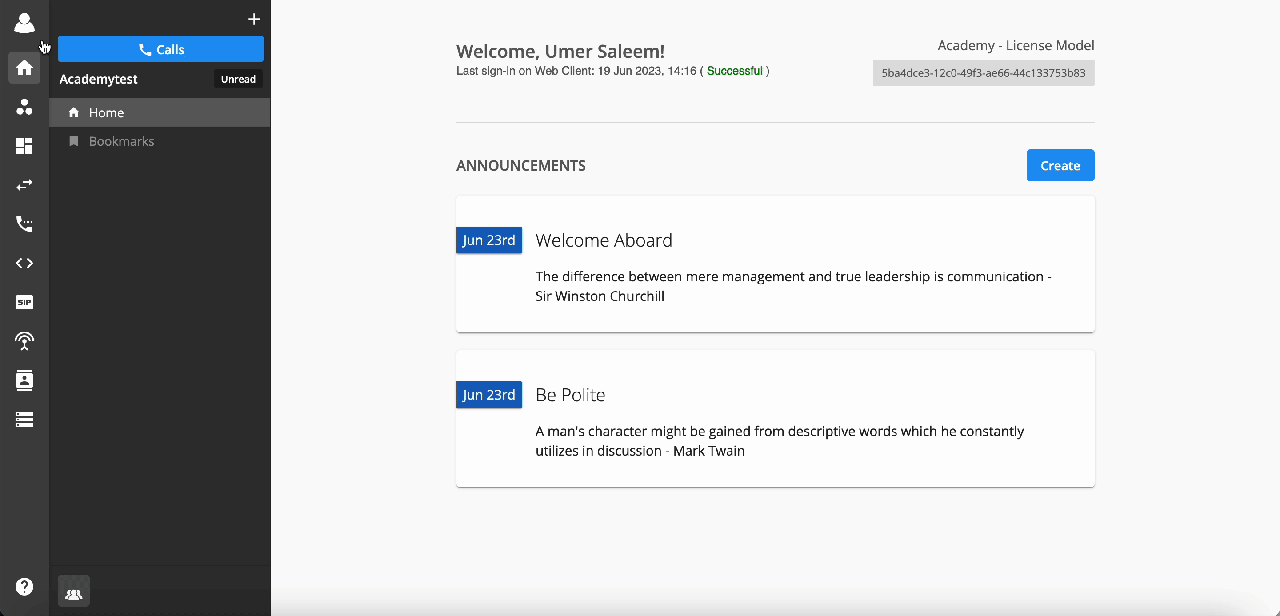

To Provision licenses follow the steps:
- Go to Manage Organization
- Select Licenses
- Select SIP Trunk
- Select any Subscription UUID
- Select Assigned Addon

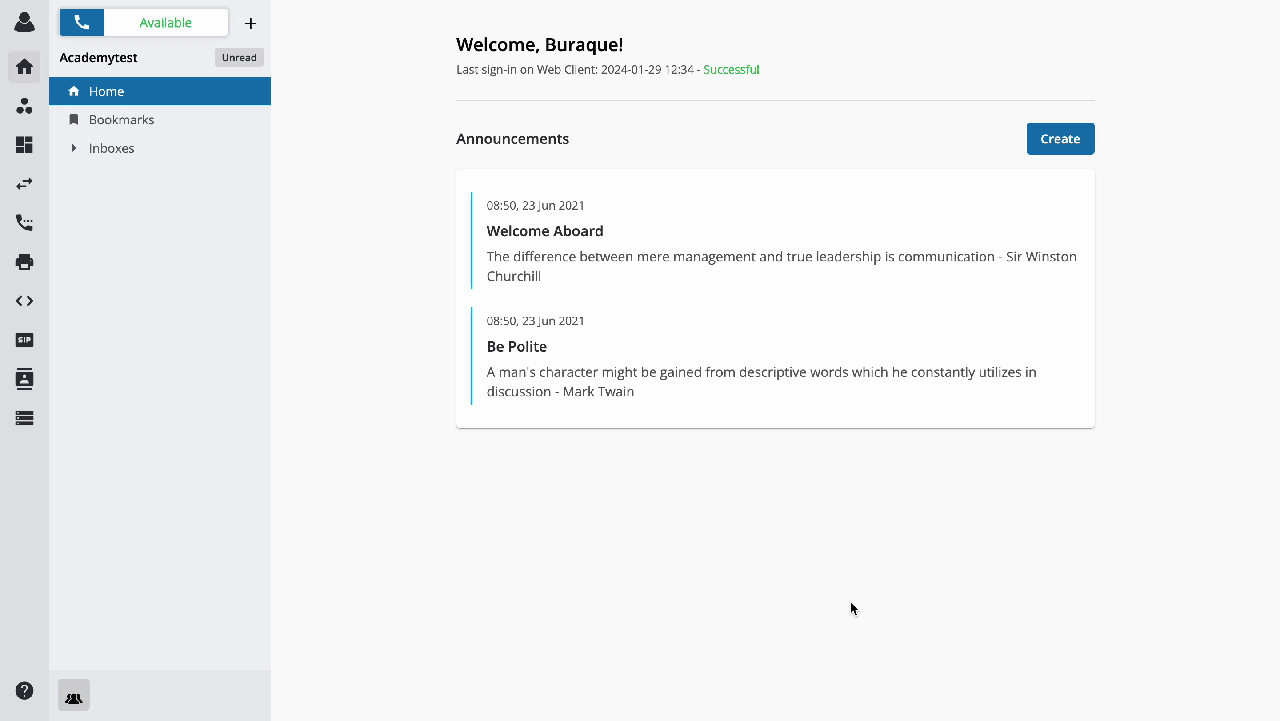

- Add SIP Trunk Concurrent Call, IP Authentication Mode, High Availability addon licenses.
- Click Assigned Number
- Select Number
### Permission Management

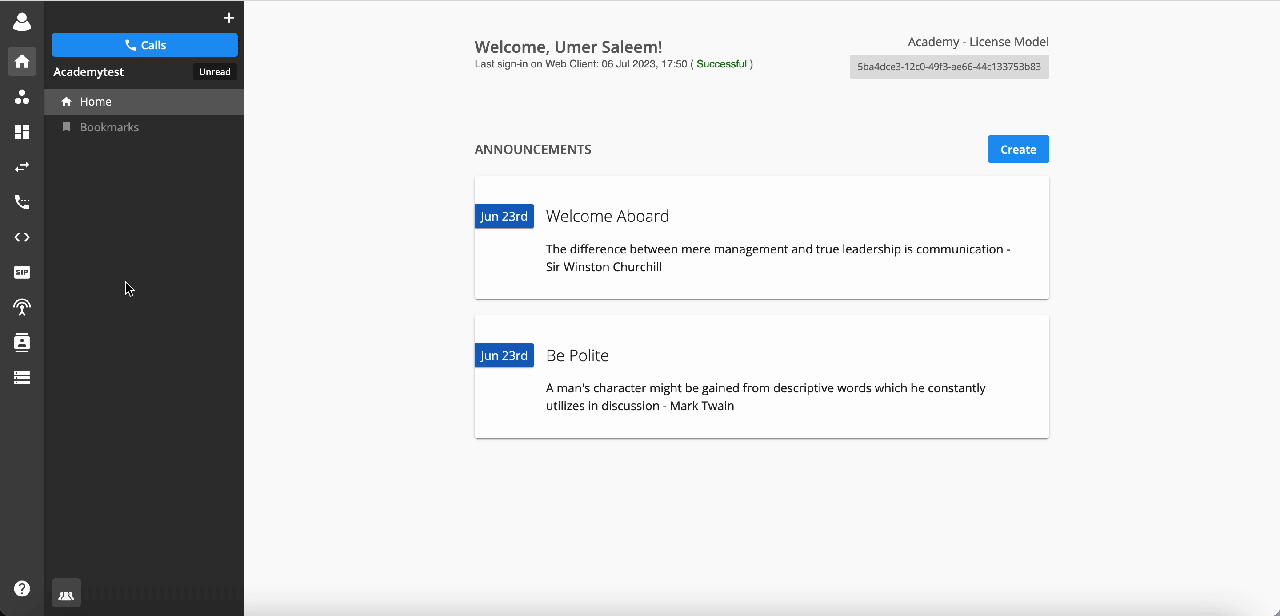

Owner can grant permission to admins by following these steps:
- Go to Manage Organization
- Select Members Tab
- Select an Admin < Pencil Icon to edit
- Select the Permission Tab
- Tick the SIP Trunk box to grant permission.
### Grant Access to Members:
Members can be granted access to SIP Account by following these steps:
- Select SIP Trunk
- Click on Overview page
- Select the pencil Icon against members
- Select members
- Click Assign
### Limitations:
- Total number of members that can be assigned access = 50 members / SIP Account
- Actions of Members who have been granted access for each SIP account:
| Actions | Admin with Permission | Member with Access |
|---|---|---|
| See SIP Icon on the Sidebar | ✅ | ✅ |
| Access SIP | ✅ | ✅ |
| Access all SIP accounts | ✅ | ❌ |
| Access a specific SIP account | ✅ | ✅ (Granted resource) |
| See Overview tab | ✅ | ✅ |
| Edit Label | ✅ | ❌ |
| Get certificate | ✅ | ✅ |
| Assign Members | ✅ | ❌ |
| See Configuration tab | ✅ | ✅ |
| Configure the SIP Settings | ✅ | ✅ |
| See Networking Info tab | ✅ | ✅ |
| See Security tab | ✅ | ❌ |
| Add IP Whitelist | ✅ | ❌ |
