Action - Iterate over a List

Introduction​

This action supports handling each item in the item list sent from API and can only be used to trigger a subroutine.

REQUIRED INPUTS

  • List: pre-defined from the trigger event (normally it is API - General Purpose)
  • Iterated Action: pre-created Subroutine.
  • Max Allowed Iteration: the maximum number of items will be handled each time.

OUTPUT

  • List (the output of looping action)

Note:​

Items will be handled in order.

  Sample Configuration​

Requirement​

Send customized SMS to Customers with unique Voucher information every time Developers call API and send an item list to the Flow.

Configuration​

I. Create a Subroutine​

  1. Click Create Flow > choose Event: When triggered by other flows >Create
    • Input:
      • Parameter Name 1: Name - Data type: String
      • Parameter Name 2: Number - Data type: String

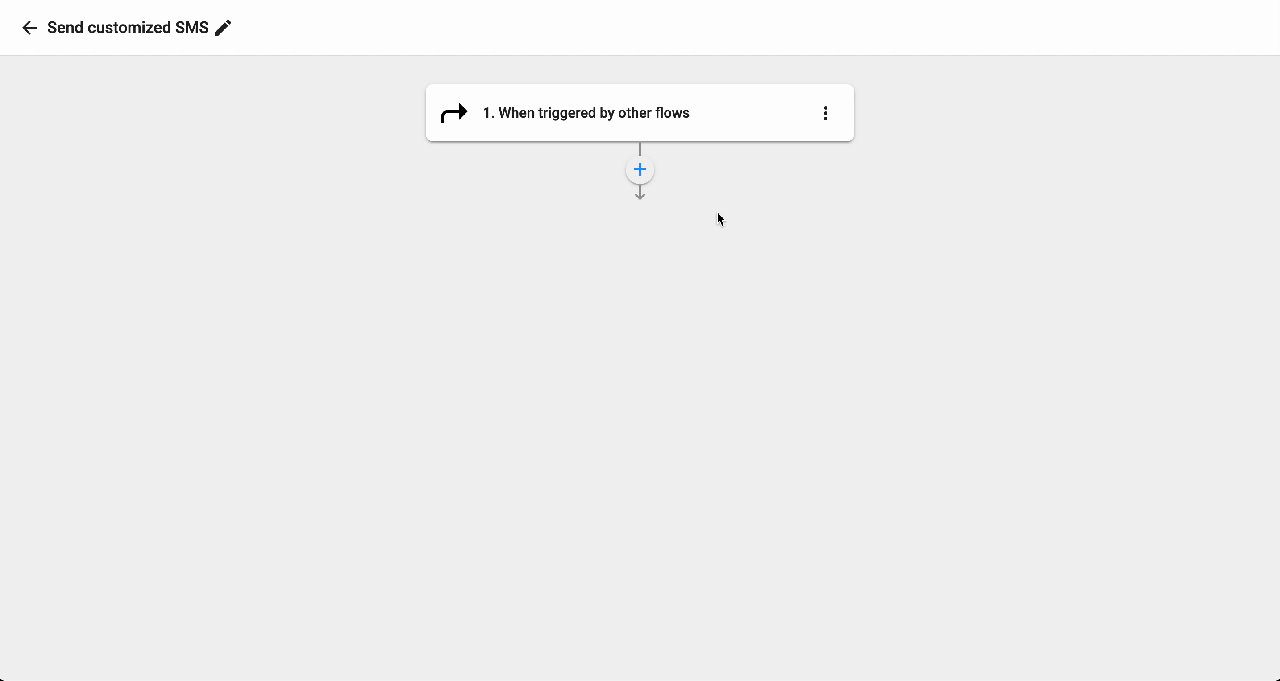

      • Parameter Name 3: Voucher - Data type: String 2. Click on the (+) icon to addAction> choose Action:Send SMS Message (legacy)> Create
  • Destinations: Click the 3-dash icon to choose the output of the Event > choose <Number>
  • Sender Name: choose a purchased number
  • Message: Type in as follows:
    • "Hi <Name>, thanks for being our loyal customer. To show our appreciation, here is a 30% voucher for your next purchase <Voucher>"

3. Click Deploy to make the Subroutine active

#### II. Create a Main Flow

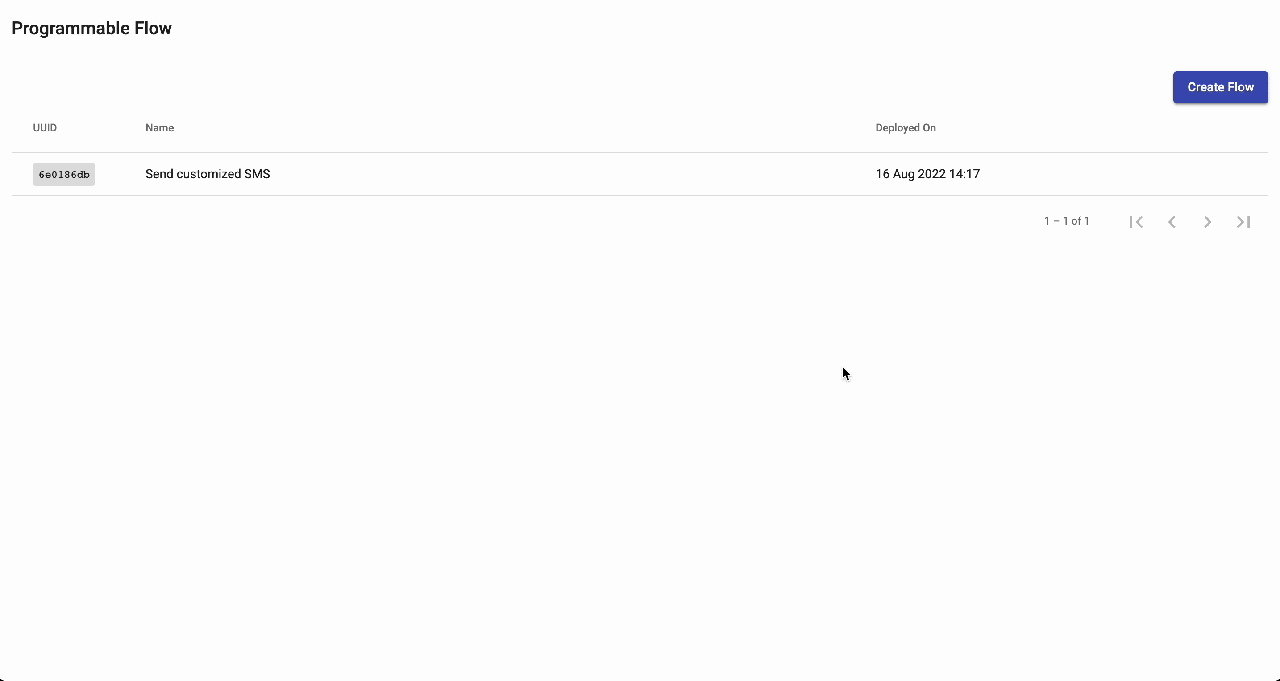

  1. Click Create Flow > choose Event: API - General Purpose > choose Advanced>Create
    • Template: add the data template that you will send to this Flow over Open API > Click Extract Properties > the system will automatically extract the Field names properly
      • Sample:
1

2\{

3 "customers": [

4 \{

5"name": "John",

6 "voucher": "JH30T",

7"number": "+6581234567"

8}

9 ]}

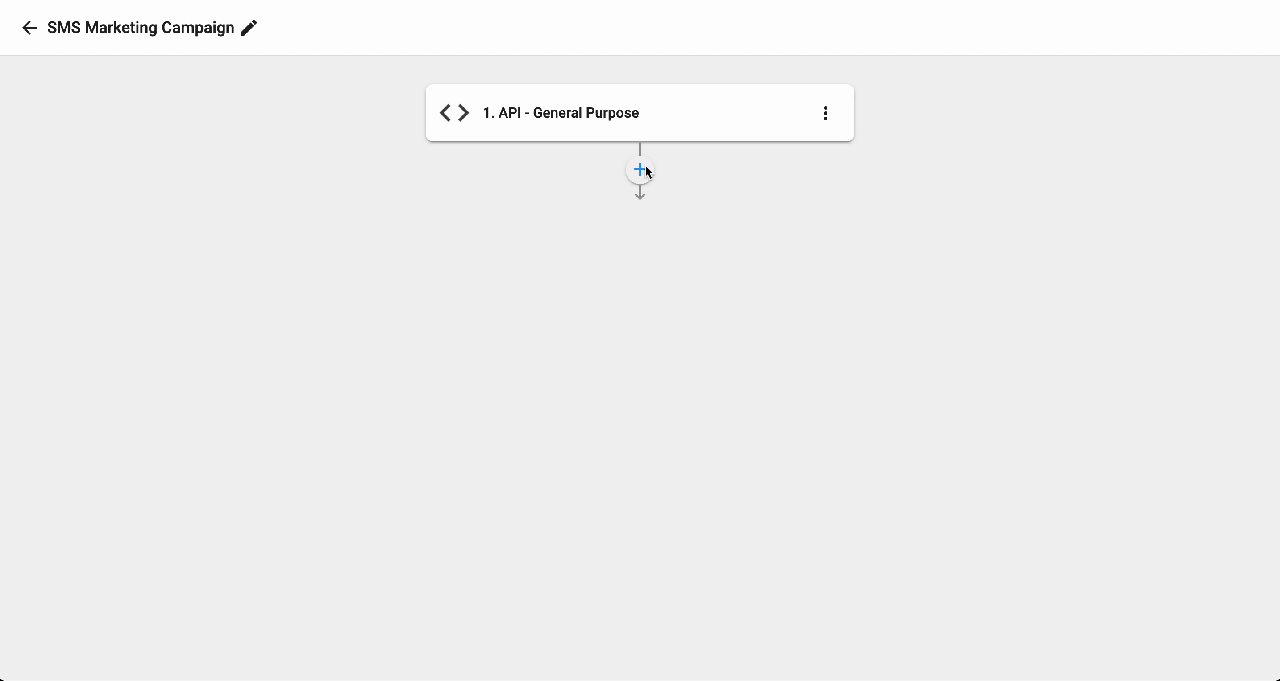

3. Click on the (+) icon to add Action > choose Action:Iterate over a List

  • List: click the 3-dash icon to choose the output of the Event > chooseAPI - General Purpose> choose**$['customers']**
  • Iterated Action: choose the pre-createdSubroutine> choose data for the Subroutine's Inputs:
    • Name: click the 3-dash icon > choose API - General Purpose > $['customers'] > $['name']
    • Number: click the 3-dash icon > choose API - General Purpose > $['customers'] > $['number']
    • Voucher: click the 3-dash icon > choose API - General Purpose>$['customers'] > $['voucher']
  • Max Allowed Iteration:100

4. Click Deploy to make the Main Flow active
